Description

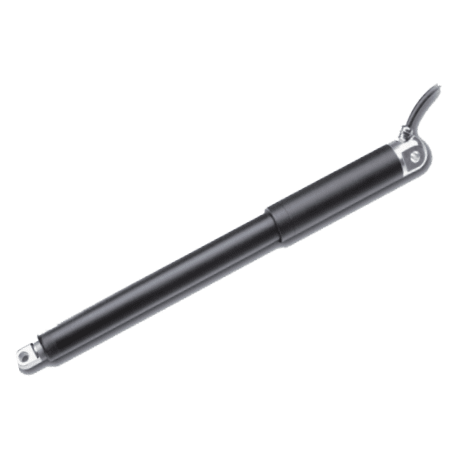

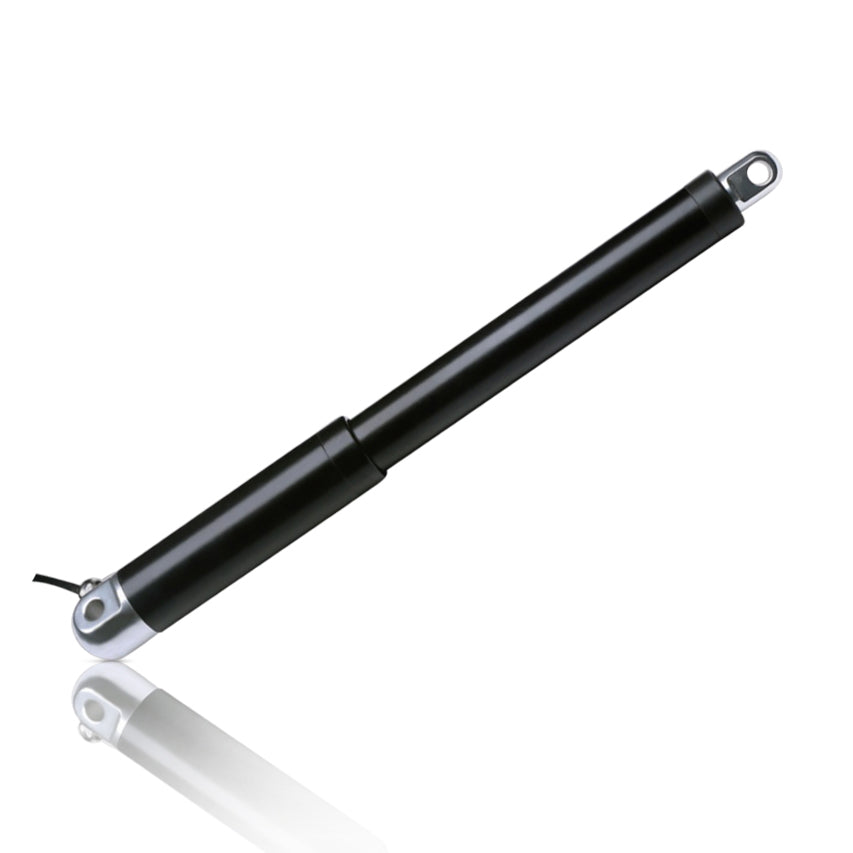

The Bullet Series 35 Cal. Linear Actuator was developed to have a slim in-line motor design. They are light weight and are fitted with high quality Japanese motors to ensure a long life span and low operating noise with an IP67 rating. Ideal for applications such as powered skylight windows, hatch doors, trap door openers etc
These Actuators come with an integrated force sensor, this means if they bump into something or when they get to the end of their stroke they automatically stop moving until you either change direction or remove the load. This is a better method for end of stroke limit switching and means that this model does not need internal limit switches - For adjustable limit-switch linear actuators try our new Adjustable limit switch Actuators. The built-in over-current protection system is a great new safety mechanism and offers many applications from Skylight Window openers to Automotive motion control where space is tight.
For further information review the specifications and technical drawings down below or visit our tutorials page for instructions on how to use this actuator with switches, remotes, speed controllers, and Arduino.
Accessories sold separately include: Remote Controls - Switches - Micro-Controllers - Power Supplies
Specifications
Model | FA-BS35-20-12-X | FA-BS35-90-12-X | FA-BS35-180-12-X | FA-BS35-270-12-X |
Push/Pull Force | 22 lbs. | 90 lbs. | 180 lbs. | 270 lbs. |
Static Force | 30 lbs. | 135 lbs. | 350 lbs. | 400 lbs. |
Speed at no load | 1.3”/sec | 0.7”/sec | 0.45”/sec | 0.26”/sec |
Speed at full load | 1.1"/sec | 0.5"/sec | 0.27"/sec | 0.17"/sec |
Voltage | 12V | |||
Max Current | 3.8 amps | |||
Maximum Power | 60W | |||
Duty Cycle | 25% | |||
Temperature Range | -20°C ~ 60°C | |||
IP Rating | 67 | |||
Noise Level | 50-60 dB | |||
Backlash | 0.01 ~ 0.03" | |||
Over Current Circuit Protection | Built-in | |||
Circuit Breaking Current | 4.5 amps | |||
Circuit Breaking Response Time | 0.1 ~ 0.5 seconds | |||
Diameter | 1.37" (35mm) | |||
Noise Level | ~63 dbA @ 1' | |||
Outer Housing Material | 6063 Aluminum | |||
Rod Material | 304 Stainless Steel | |||
Lead Screw | Trapezoid | |||
Material of nut | Plastic | |||
Life Cycles | 10k | |||
Feedback | None | |||
Synchronous Capability | None, 5-10% variation in speed | |||
Cable Length | 5 feet | |||
Wire Size | 16AWG | |||
Brackets | MB35 |

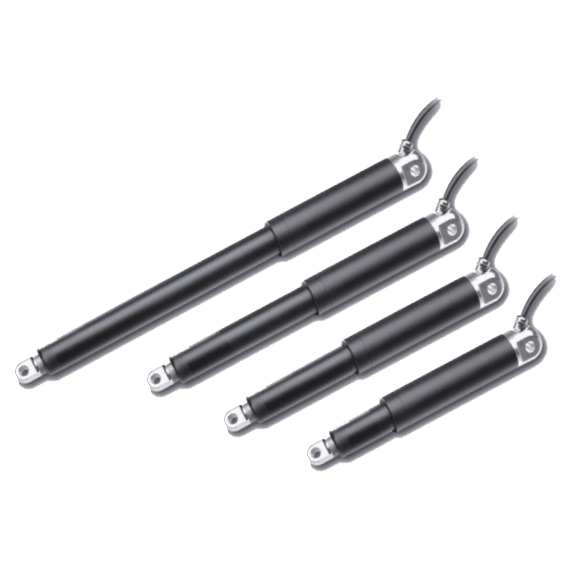

Stroke Length | Retracted Length | Extended Length | Weight | Step File |
6" | 13.87" | 19.87" | 1.7 lb. | |
9" | 16.87" | 25.87" | 2.2 lb. | |
12" | 19.87" | 31.87" | 2.4 lb. | |
18" | 25.87" | 43.87" | 3.5 lb. | |
24" | 31.87" | 55.87" | 3.7 lb. | |
28" | 35.87" | 63.87" | 3.95 lb. |
Curve Graphs
Wiring Diagram
Click here to view our wiring diagram generator to help you set up your actuator system
3D Model Downloads (.STEP)
Same files apply to all Force models

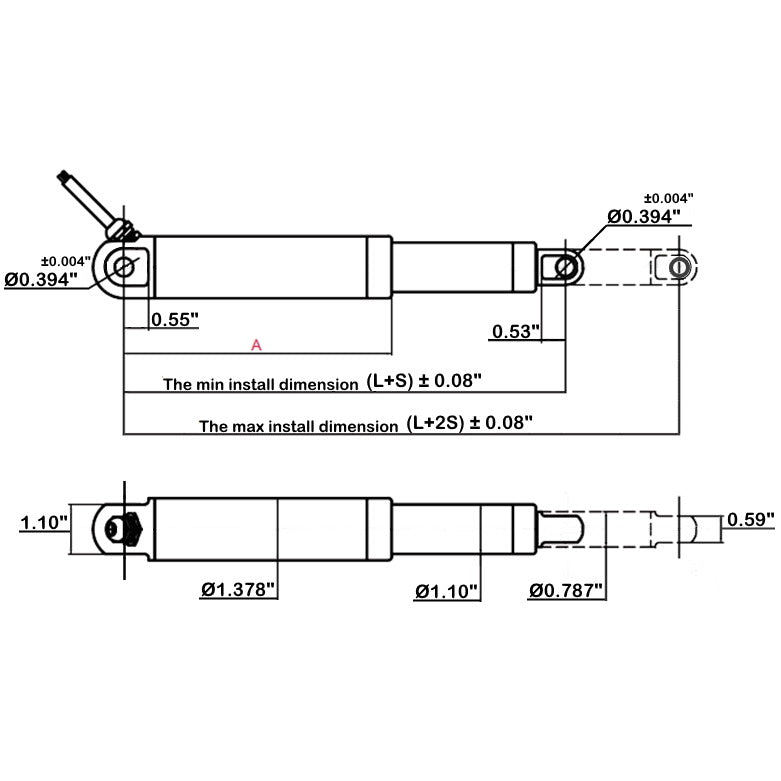

Actuator Dimensions
Click on each image to get the PDF dimensions sheet. All SKU's are below. All force variants are the same.
