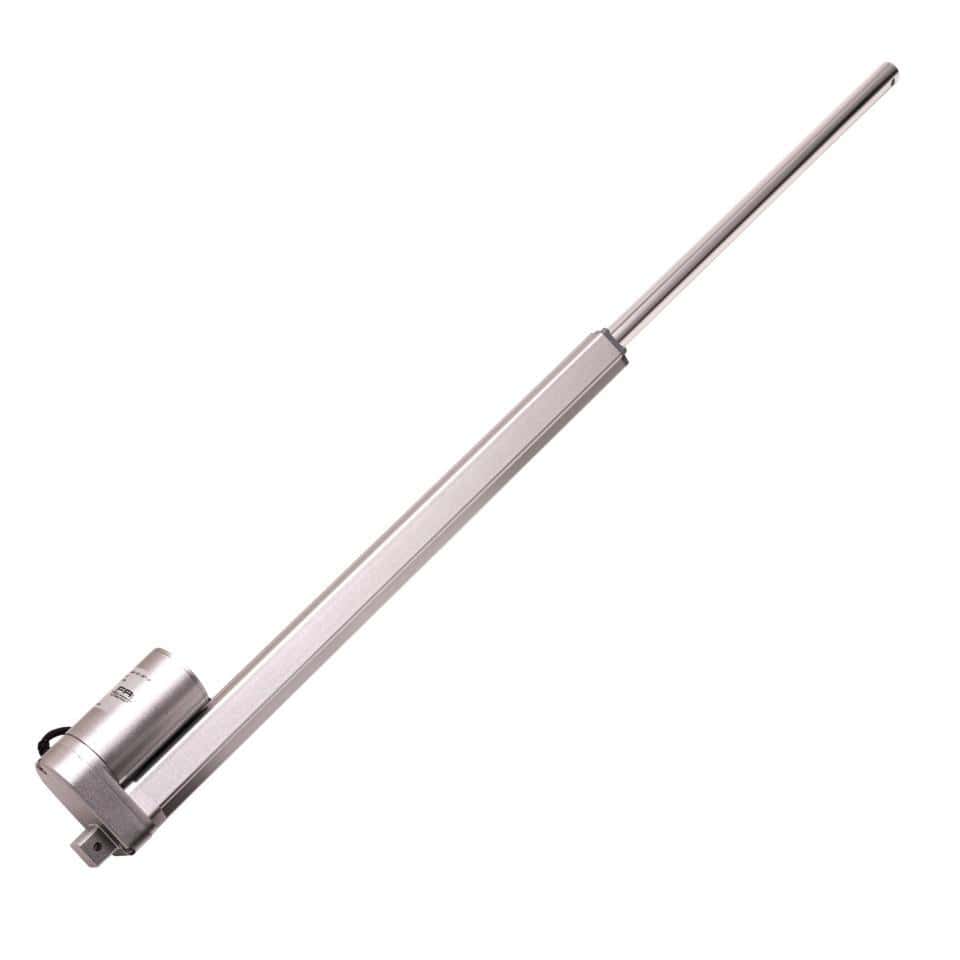

P-Series High Force Actuators
P-Series High Force Actuators
Description
***WILL NO LONGER BE AVAILABLE IN 2025***
Based on our popular P-Series Linear Actuator models, we gave this model a Boost in Motor size to be able to offer more Force - Now up to 400 lbs. These units still retain all the same compact and versatile body shape while incorporating a larger upgraded DC Motor are the beginning of most home and product automation enterprises.
The High Force P-series model is capable of 400 lbs dynamic force and 800 lbs static force. These units come equipped with built-in limit switches, are manufactured with high-grade aluminum outer and inner tubes, and come in various stroke lengths.
CAD models of this actuator can be found under Resources/3D Files. For further information review the specifications and technical drawings down below or visit our tutorials page for instructions on how to use this actuator with switches, remotes, speed controllers, and Arduino.
Features and Benefits
- Internal limit switches automatically shut off the unit at the end of the stroke - This protects you and your equipment from possible damage. For adjustable limit-switch linear actuators try our new Adjustable limit switch Actuators
- Huge range of stroke options as standard: 2, 4, 6, 9, 12, 18, 24, and 30 inches are available - Gives you more flexibility.
- Delivering a higher force of 400 lbs - Giving you even more flexibility to cover almost any application.
- 800 lbs static force
- Inner and outer tubes are constructed with high-grade aluminum
- Maintenance-free - Gives you more free time to do more important things
- Enhanced corrosion resistance - You can use this Actuator in any Environment
- Increased durability - Gives you peace of mind knowing it can handle the harshest of applications with ease.
- Speed control option - Use FA-SC2 Speed controller
- Accessories sold separately include: Remote Controls - Switches - Micro-Controllers - Power Supplies
- Fits with MB1-P bracket
- Fits with MB10 Rod End Bracket
-
Fits with MB6-P Body Mounting Bracket
Specifications
| Model FA-400-12-X-P | |
| Dynamic Force | 400 lbs. |
| Static Force | 800 lbs. |
| Speed ("/S) | 0.3"/Second |
| Gear Ratio | 19:1 |
| Duty Cycle | 25% at 100% load, 50% at 25% of load , absolute max. 5 mins continuous use |
| IP Rating | 61 |
| Screw Type | ACME |
| Sound Rating | 20 dB over Ambient |
| Input | 12v DC |
| Max Draw | 5A |
| Feedback | None |
| Synchronous Capability | None, 5-10% variation in speed |
| Operational Temperature | -6°C/65°C (-21°F/150°) |
| Limit Switch | Built-in (factory preset) - For adjustable limit-switch linear actuators try our new Adjustable limit switch Actuators |
| Safety Certifications | CE |
| Wire Length | 2.5 feet |
| Wire Size | 18AWG |
| Bracket(s) | MB1-P |
| Stroke | Retracted Length | Extended Length | Weight (lbs) | STEP File |
| 2" | 6.34" | 8.34" | 2.64 | FA-400-12-2-P |
| 4" | 8.58" | 12.58" | 2.88 | FA-400-12-4-P |
| 6" | 10.55" | 16.55" | 3.10 | FA-400-12-6-P |
| 9" | 13.50" | 22.50" | 3.46 | FA-400-12-9-P |
| 12" | 16.45" | 28.45" | 3.74 | FA-400-12-12-P |
| 18" | 22.36" | 40.36" | 4.36 | FA-400-12-18-P |
| 24" | 28.27" | 52.27" | 5.00 | FA-400-12-24-P |
| 30" | 34.17" | 64.17" | 5.62 | FA-400-12-30-P |
Technical Drawings
Performance Graphs
Product Video
P-series High Force Linear Actuator Review
Comparison Video
Heavy Duty vs P-series High Force Linear Actuator Comparison
Demo Video
*This video demonstrates the 35lb force version. Speed will vary depending on force.
3D Model Downloads (.STEP)
- 2 Inch Stroke
- 4 Inch Stroke
- 6 Inch Stroke
- 9 Inch Stroke
- 12 Inch Stroke
- 18 Inch Stroke
- 24 Inch Stroke
- 30 Inch Stroke
Wiring Diagram
Click here to view our wiring diagram generator to help you set up your actuator system
