Description

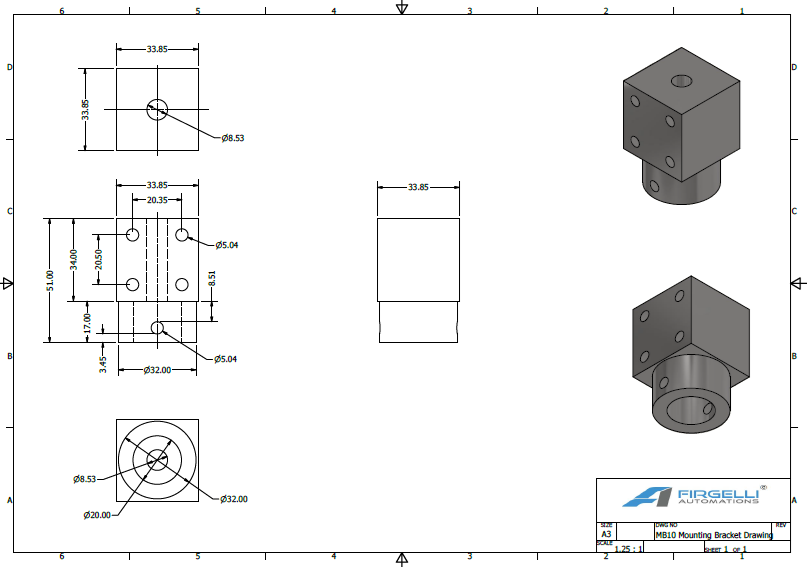

The MB10 Linear Actuator Mounting Bracket is engineered for ultimate versatility and durability when mounting the moving end of your linear actuator. Specifically designed to fit any actuator with a 20mm diameter rod end, this bracket ensures a secure and adaptable solution for both industrial and custom applications.

Crafted from high-strength T6 Aluminum, the MB10 bracket offers superior structural integrity under dynamic loads. It features a unique 5-sided block design, providing multiple mounting surfaces with pre-drilled and pre-tapped holes on two faces, allowing you to attach virtually anything, from custom linkages and panels to sensor housings or structural supports.

Key Features:

• Universal Fit: Compatible with the moving shaft (rod end) of any actuator featuring a 20mm diameter rod.

• Five-Sided Mounting: Drill-tapped holes on 2 faces offer flexible attachment options for ultimate integration into your design.

• Robust Construction: Built from high-strength T6 Aluminum for excellent strength and durability.

• Secure Connection: Threaded holes ensure components are fastened firmly with no play or slippage.

• Ideal for Custom Projects: Whether you're building robotics, automation systems, or industrial machinery, this bracket provides a reliable and adaptable solution.

Typical Applications:

• Mounting the moving end of linear actuators in push or pull configurations

• Robotics arms, automation linkages, and positioning systems

• Furniture, hatches, panels, or custom enclosures

• Automotive and marine actuator setups
