Description

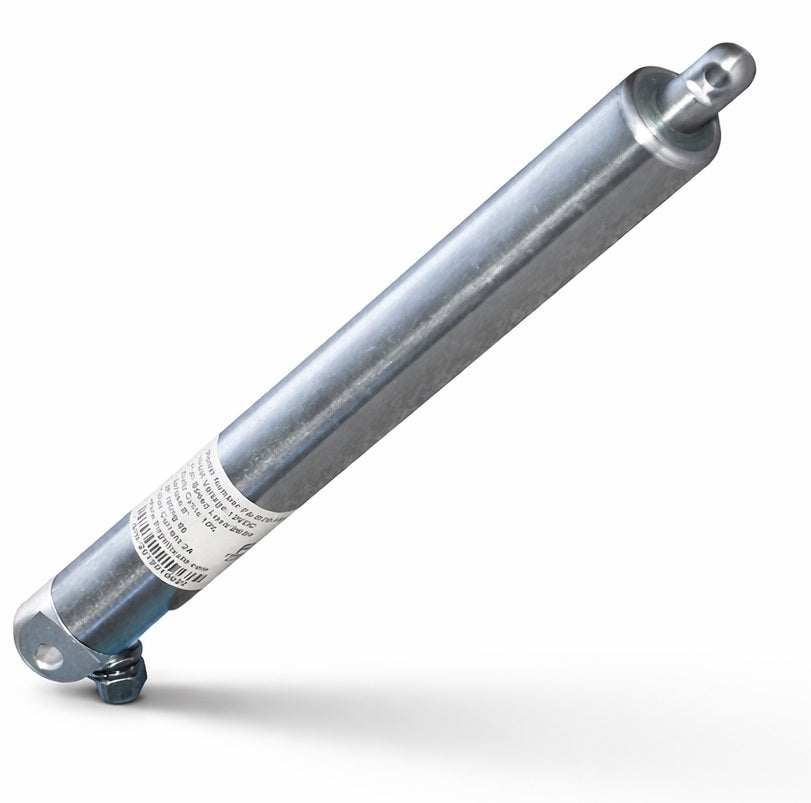

The Bullet Series 23 Cal. linear actuators are made from SUS304 stainless steel. Available in 12V or 24V and stroke lengths from 1 to 12 inches.
These Actuators come with an integrated force sensor (in the form of an overcurrent protection circuit). If they bump into something, or when they get to the end of their stroke, they automatically stop moving until you change direction or remove the load. Please be aware that this model does not have internal limit switches - For adjustable limit-switch linear actuators try our new Adjustable limit switch Actuators. Due to the over-current protection circuit, these will not work correctly with a Double-Pole Double-Throw (DPDT) relay.
CAD models of this actuator can be found under Resources/3D Files. For further information review the specifications and technical drawings down below or visit our tutorials page for instructions on how to use this actuator with switches, remotes, speed controllers, and Arduino.
Accessories sold separately include: Remote Controls - Switches - Micro-Controllers - Power Supplies
Specifications
| FA-B26-12V-(S) | FA-B26-24V-(S) | |
| Push/Pull Force | 26 lbs. | 26 lbs. |
| Self Locking Force | 31 lbs. | 31 lbs. |
| Speed at full load | 0.26”/sec | 0.26”/sec |
| Gear Ratio | 144:1 | 144:1 |
| Voltage | 12V | 24V |
| Max Current | 0.4A | 0.25A |
| Duty Cycle | 10% | |
| Operating Temp. Range | -4°F to 150°F ( -20°C to 65°C)) | |
| Over Current Circuit Protection | External | |
| Circuit Breaking Current | 1A | 0.5A |
| Circuit Breaking Response Time | 0.1 to 0.5 Seconds | |
| IP Rating | 66 | |
| No Load Noise Level | 50-73 dBA @ 1' | |
| Diameter | 0.905" (23mm) | |
| Clevis hole diameter | 0.1945" | |
| Material | Stainless Steel 304 | |
| Lead Screw Pitch | P2.5*2T | |
| Cable Length | 1.5 feet | |
| Wire Size | 22AWG | |
| Brackets | MB14 | |
| Stroke Length | Retracted Length | Extended Length | Weight (lb) | STEP File |
| 1” | 5.88" | 6.93" | 0.65 | FA-B26-(F)-1 |
| 2” | 6.87" | 8.86" | 0.65 | FA-B26-(F)-2 |
| 3” | 7.85" | 10.83" | 0.75 | FA-B26-(F)-3 |
| 4” | 8.84" | 12.79" | 0.75 | FA-B26-(F)-4 |
| 5” | 9.82" | 14.76" | 0.85 | FA-B26-(F)-5 |
| 6” | 10.81" | 16.73" | 0.95 | FA-B26-(F)-6 |
| 8” | 12.78" | 20.67" | 1.1 | FA-B26-(F)-8 |
| 10" | 15.92" | 25.79" | 1.3 | FA-B26-(F)-10 |
| 12" | 17.89" | 29.72" | 1.4 | FA-B26-(F)-12 |
Technical Drawings
Curve Graphs
3D Model Downloads (.STEP)
- 1 Inch Stroke
- 2 Inch Stroke
- 3 Inch Stroke
- 4 Inch Stroke
- 5 Inch Stroke
- 6 Inch Stroke
- 8 Inch Stroke
- 10 Inch Stroke
- 12 Inch Stroke
Wiring Diagram
Click here to view our wiring diagram generator to help you set up your actuator system
